ACO Monoblock

ACO Monoblock is a drainage system in a monolithic design: channel and cover are made of polymer concrete in one casting. The result is an extremely stable unit without loose parts, there is also no need for bonded joints. The unique monocast construction is a guarantee for maximum safety and stability in large-scale drainage - an ideal alternative to conventional solutions. Due to its monolithic design, the Monoblock always remains stable even under extreme loads.

Contact us:

Jeslyn Teo

Tel: +6012 326 2960
Email: Jeslyn.Teo@aco.com

Click for WhatsApp

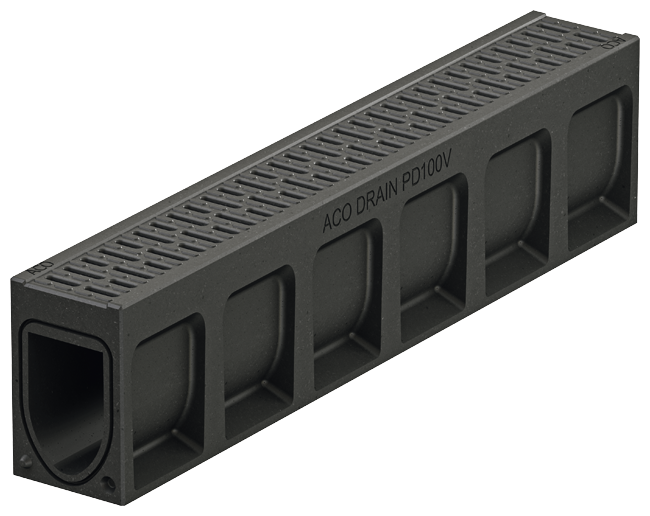

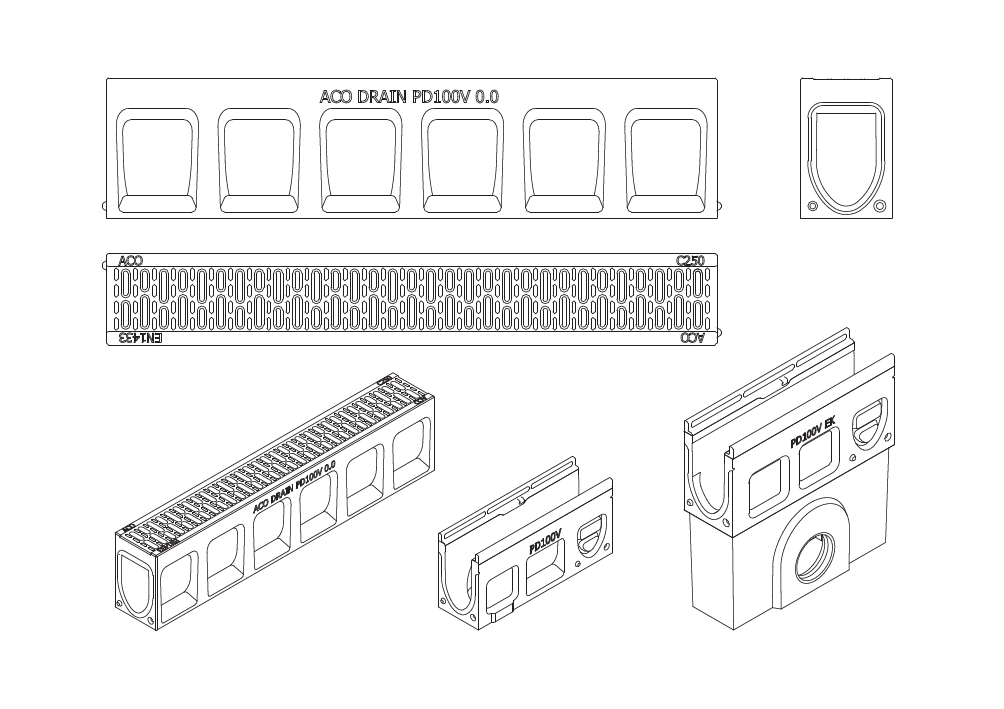

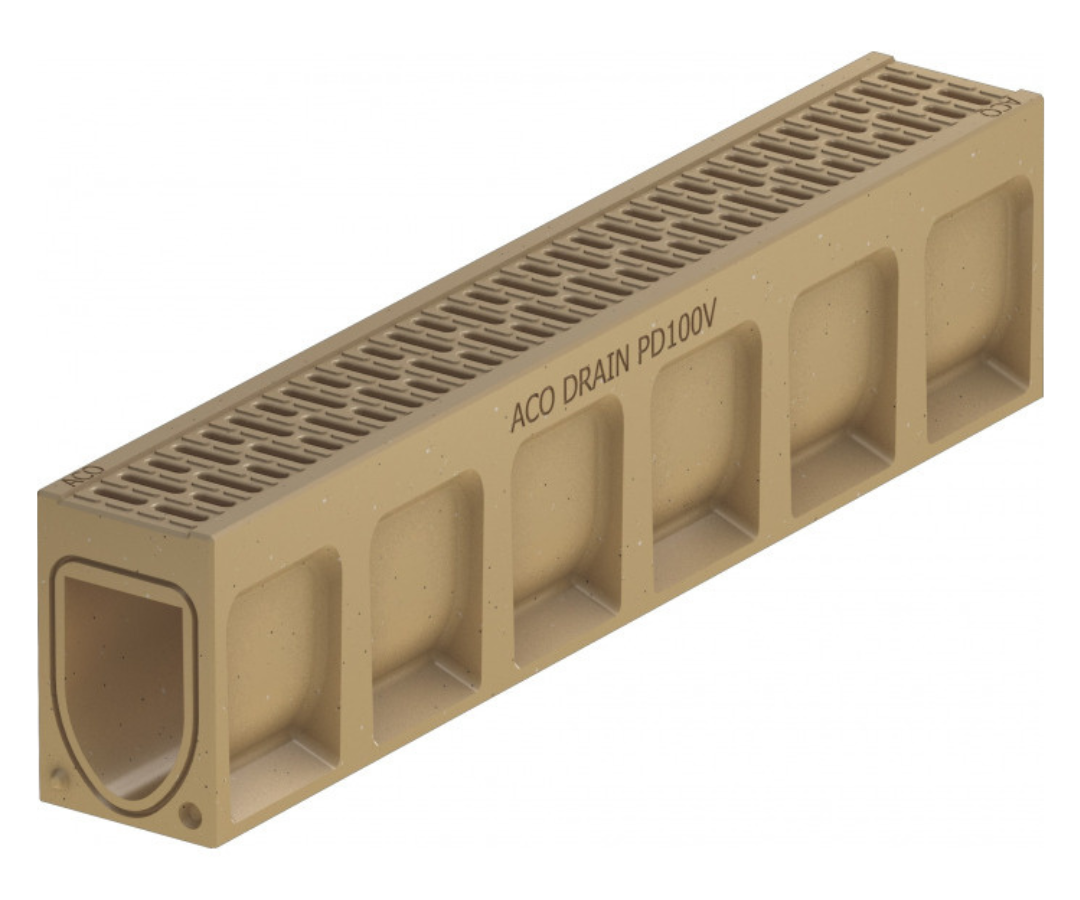

ACO Monoblock PD 100 V (NW 100 mm)

  • Channel body without invert slope, 1000 mm
  • Inspection element, 500 mm
  • sump unit, 500 mm

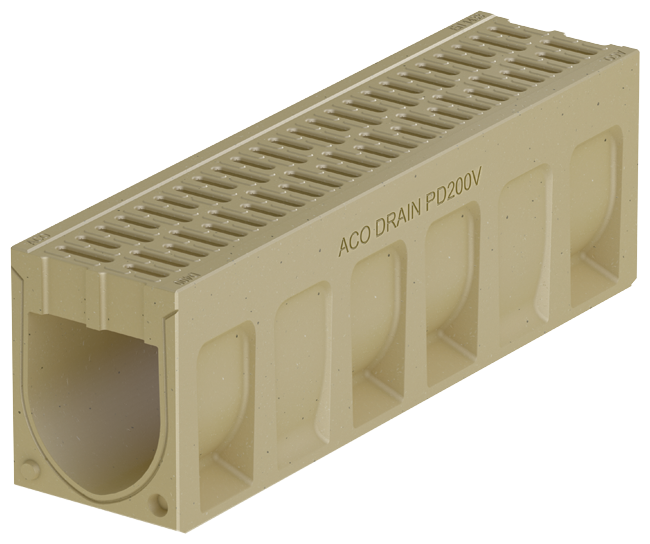

Monoblock PD 200 V (NW 200 mm)

  • Channel body without invert slope, 1000 mm
  • Inspection element, 500 mm
  • sump unit, 500 mm

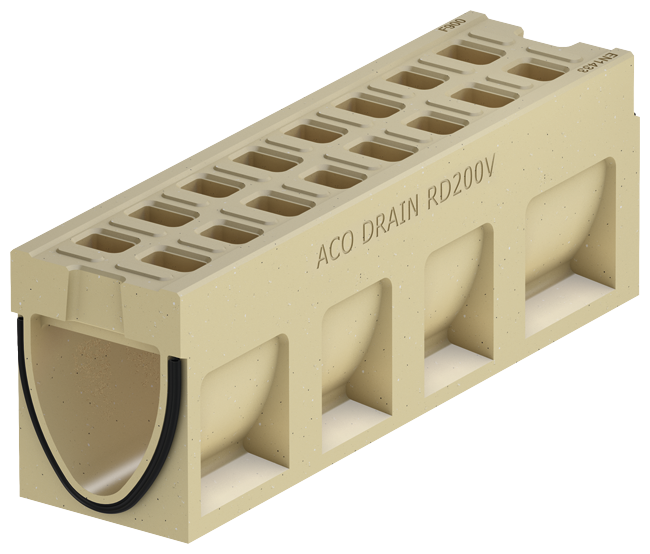

Monoblock RD 200 V (NW 200 mm)

  • Monolithic channel body, natural (leaktight)
  • Monolithic channel body, natural (OPA)
  • Monolithic channel body, natural (abZ)
  • Monolithic channel body, natural (standard)

Monoblock RD
Product TypeLoad classmmmmmmkg Art. No
LengthWidthHeightWeight
Monoblock RD 200ChannelF900100026033092130004
1000260530111130006
Inspection Unit66026033051.6130016C
66026053067.6130017C
Endcap 502603308.411467D
5026053015.111466D
Monoblock PD
Product TypeLoad classmmmmmmkgArt. No
LengthWidthHeightWeight
Monoblock PD 100ChannelD400100015023032.810832C
Inspection Unit50015023017.810836
Endcap201502301.410833C
Monoblock PD 200Channel10002503207811026
10002503708211027
10002504208611028
Inspection Unit5002503202511029
66025053067.6130017C
Endcap 502603308.411467D
5026053015.111466D

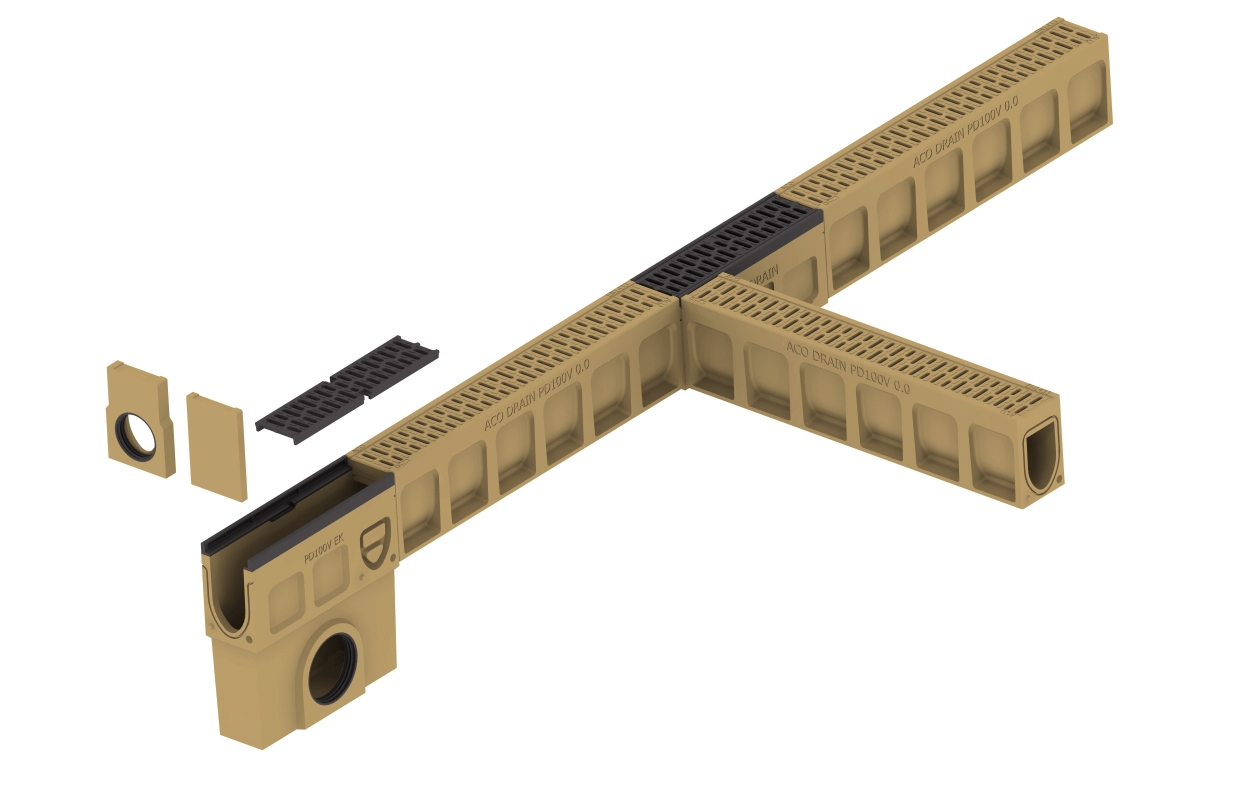

PD System Illustration

Monoblock RD
Product TypeLoad classmmmmmmkg Art. No
LengthWidthHeightWeight
Monoblock RD 200ChannelF900100026033092130004
1000260530111130006
Inspection Unit66026033051.6130016C
66026053067.6130017C
Endcap 502603308.411467D
5026053015.111466D
Monoblock PD
Product TypeLoad classmmmmmmkgArt. No
LengthWidthHeightWeight
Monoblock PD 100ChannelD400100015023032.810832C
Inspection Unit50015023017.810836
Endcap201502301.410833C
Monoblock PD 200Channel10002503207811026
10002503708211027
10002504208611028
Inspection Unit5002503202511029
66025053067.6130017C
Endcap 502603308.411467D
5026053015.111466D

PD System Illustration
