ACO Euroline

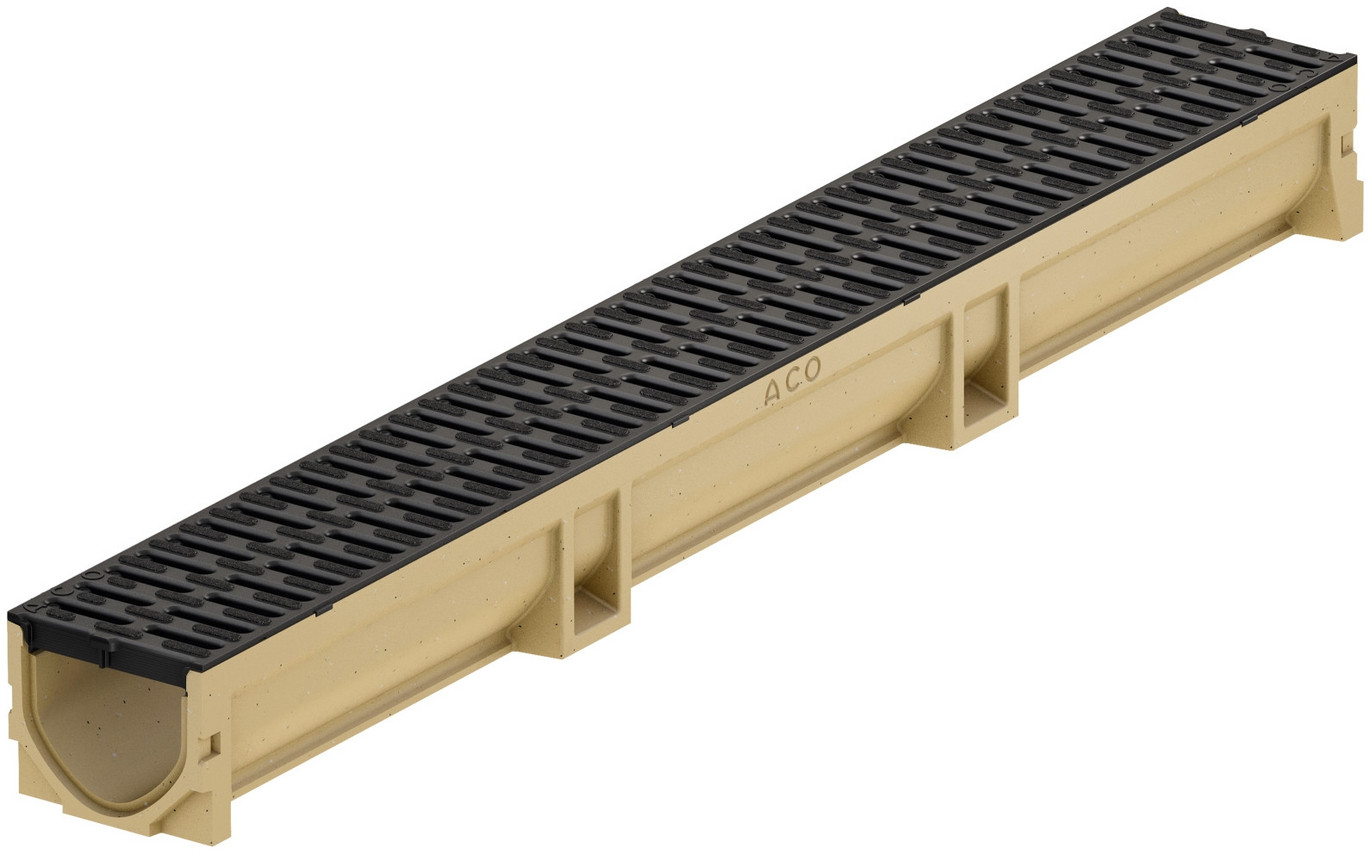

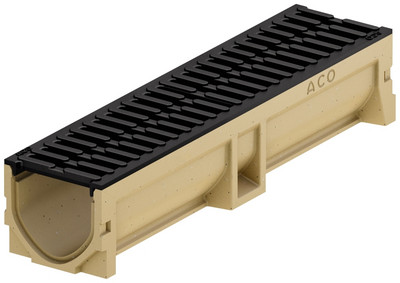

ACO Euroline is made to withstand the weight of automobiles and is intended for usage in gardens and houses. By keeping rain and wastewater out of entrances, walkways, garage forecourts, and terraces, it safeguards the structure of the building. The channel is safer and more durable due to its improved channel body and new locking mechanism, which also makes installation simpler.
Contact us:
Jeslyn Teo
Tel: +6012 326 2960
Email: Jeslyn.Teo@aco.com
Click for WhatsApp
ACO Euroline
| Product Type | Load class | mm | mm | mm | kg | Art. No | |
| Length | Width | Height | Weight | ||||
| Euroline E100 | Channel | B125 | 1000 | 118 | 50 | 4.4 | 312845 |
| 1000 | 118 | 97 | 6.8 | 38506 | |||
| Endcap | 15 | 118 | 100 | 0.4 | 312849C | ||
| Euroline E200 | Channel | C250 | 1000 | 235 | 150 | 18.7 | 860000 |
| 1000 | 235 | 250 | 27.9 | 860020 | |||
| 1000 | 235 | 350 | 36.2 | 312970 | |||
| Channel Pre-knockout | 1000 | 235 | 150 | 19.3 | 312951 | ||
| 1000 | 235 | 250 | 32.2 | 312981 | |||
| 1000 | 235 | 350 | 42.6 | 312971 | |||
| Endcap | 20 | 235 | 150 | 1.5 | 860210 | ||
| 20 | 235 | 250 | 2.5 | 860230 | |||
| 20 | 235 | 350 | 3.5 | 312979 | |||
| Grate Type | Load class | mm | mm | mm | kg | Art. No | |
| Length | Width | Height | Weight | ||||

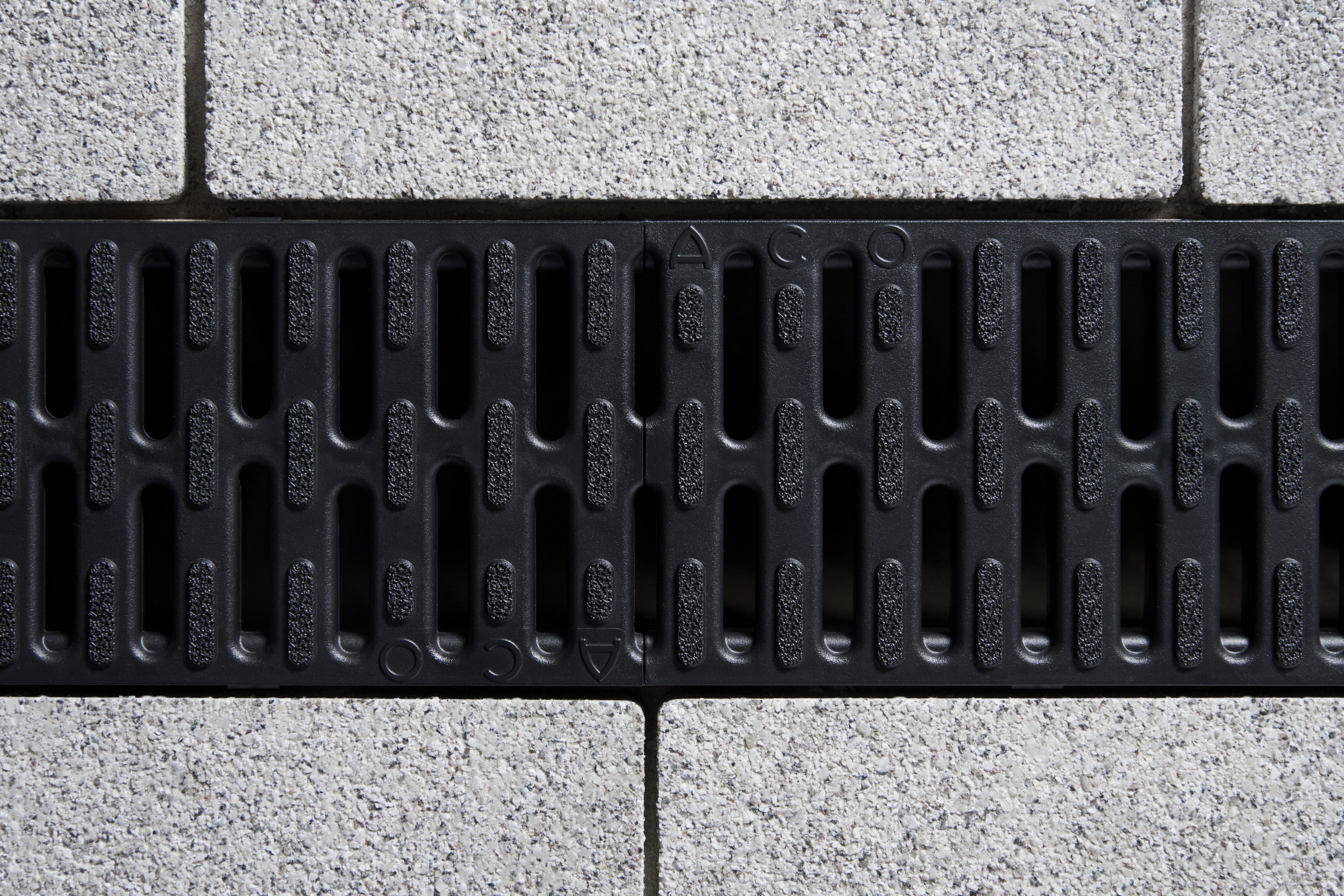

| Euroline E100 | Polypropylene micro grip grate | B125 | 1000 | 118 | - | 0.6 | 319250 |
| Galvanized slotted grate | B125 | 1000 | 118 | - | 1.2 | 38516 | |
| Powder-coated slotted black grate | B125 | 1000 | 118 | - | 1.3 | 10305 | |

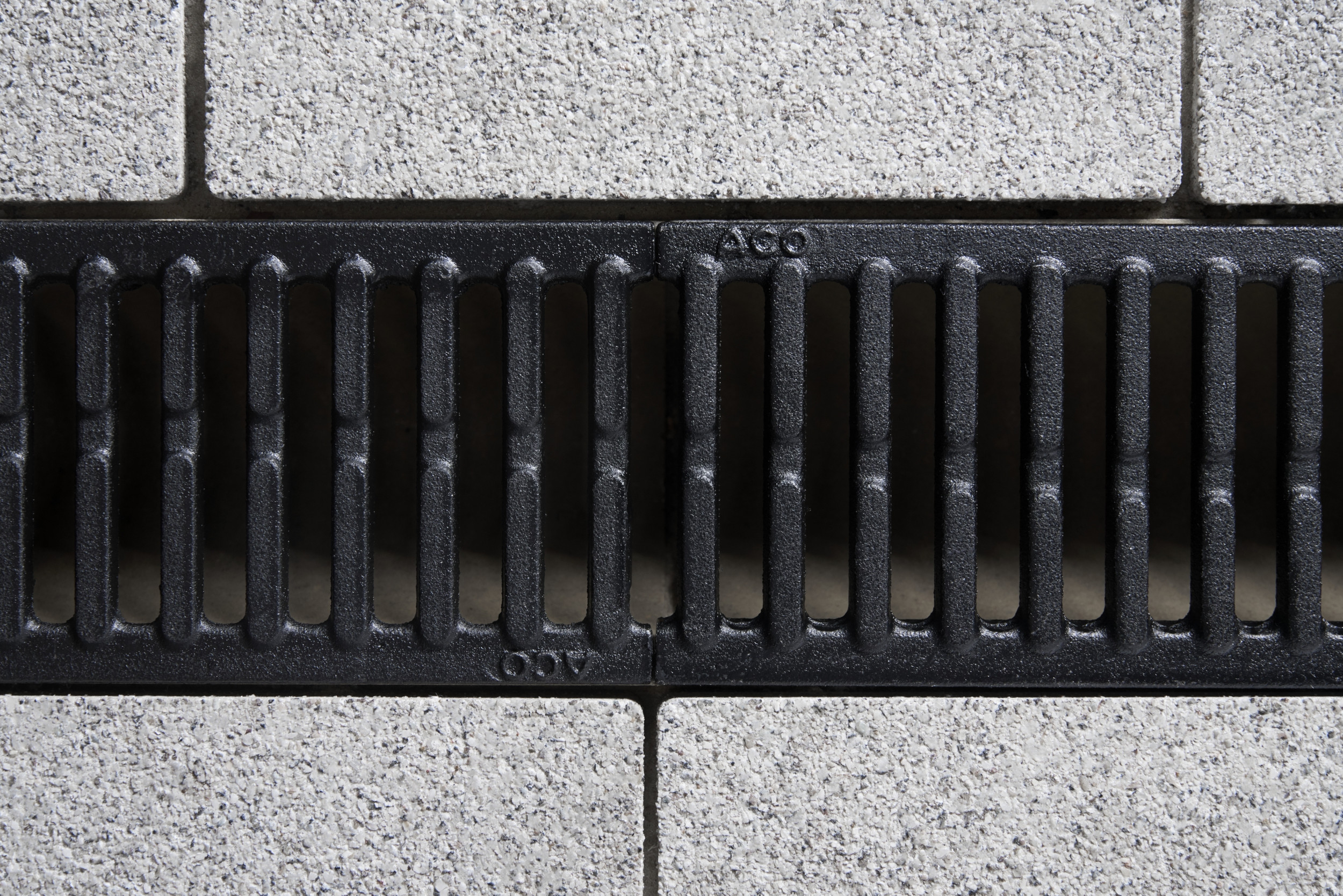

| Cast iron grate | C250 | 500 | 118 | - | 2.5 | 310309 | |

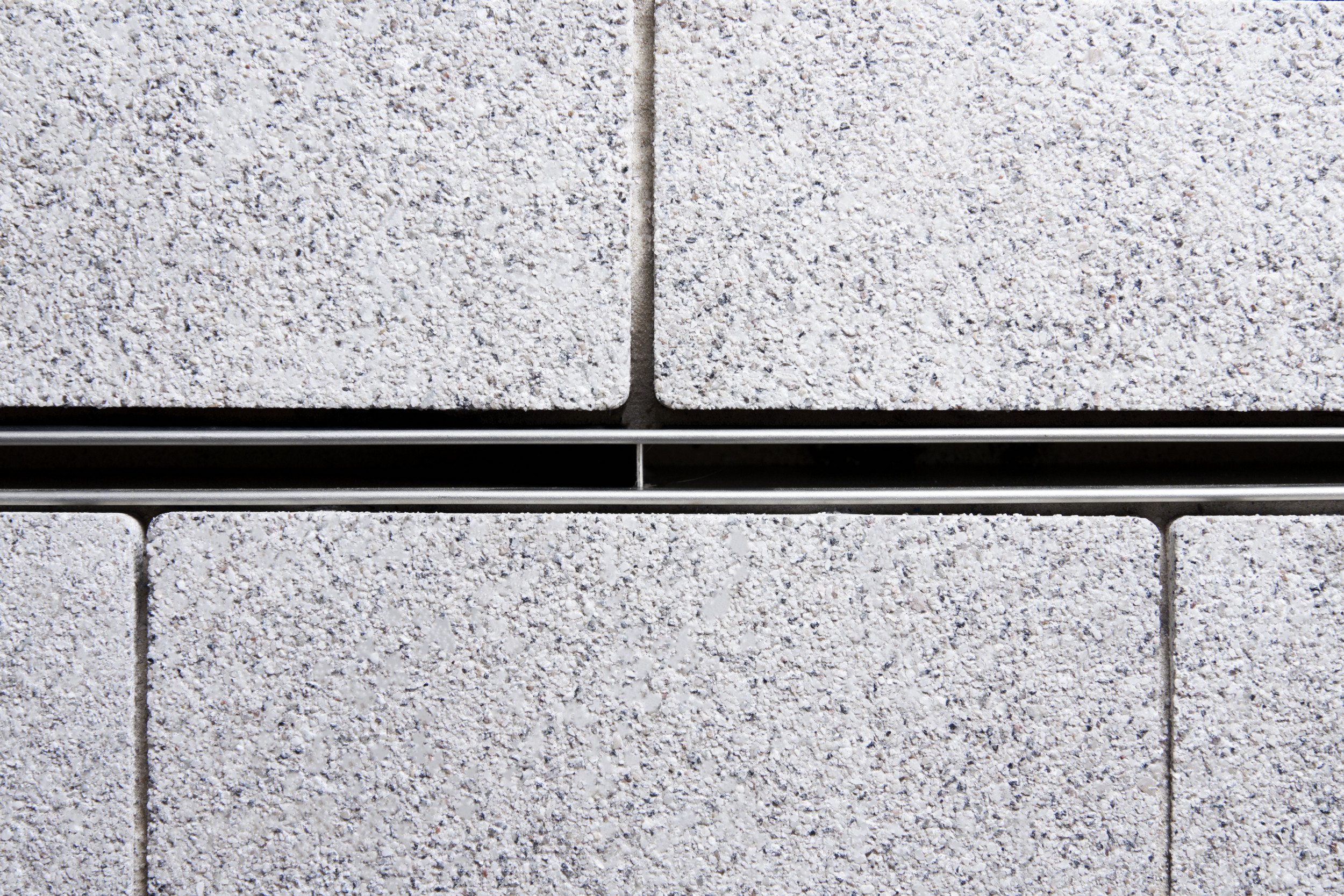

| Brickslot | B125 | 1000 | 118 | 50 | - | S511291 | |
| Brickslot inspection unit | B125 | 500 | 118 | 50 | - | S621291 | |
| Euroline E200 | Cast iron grate | C250 | 500 | 235 | - | 6.8 | 860106 |
| Brickslot | C250 | 1000 | 235 | 50 | - | S551391 | |
| Brickslot inspection unit | C250 | 500 | 235 | 50 | - | S661391 | |
