XtraDrain – drainage channels made of plastic

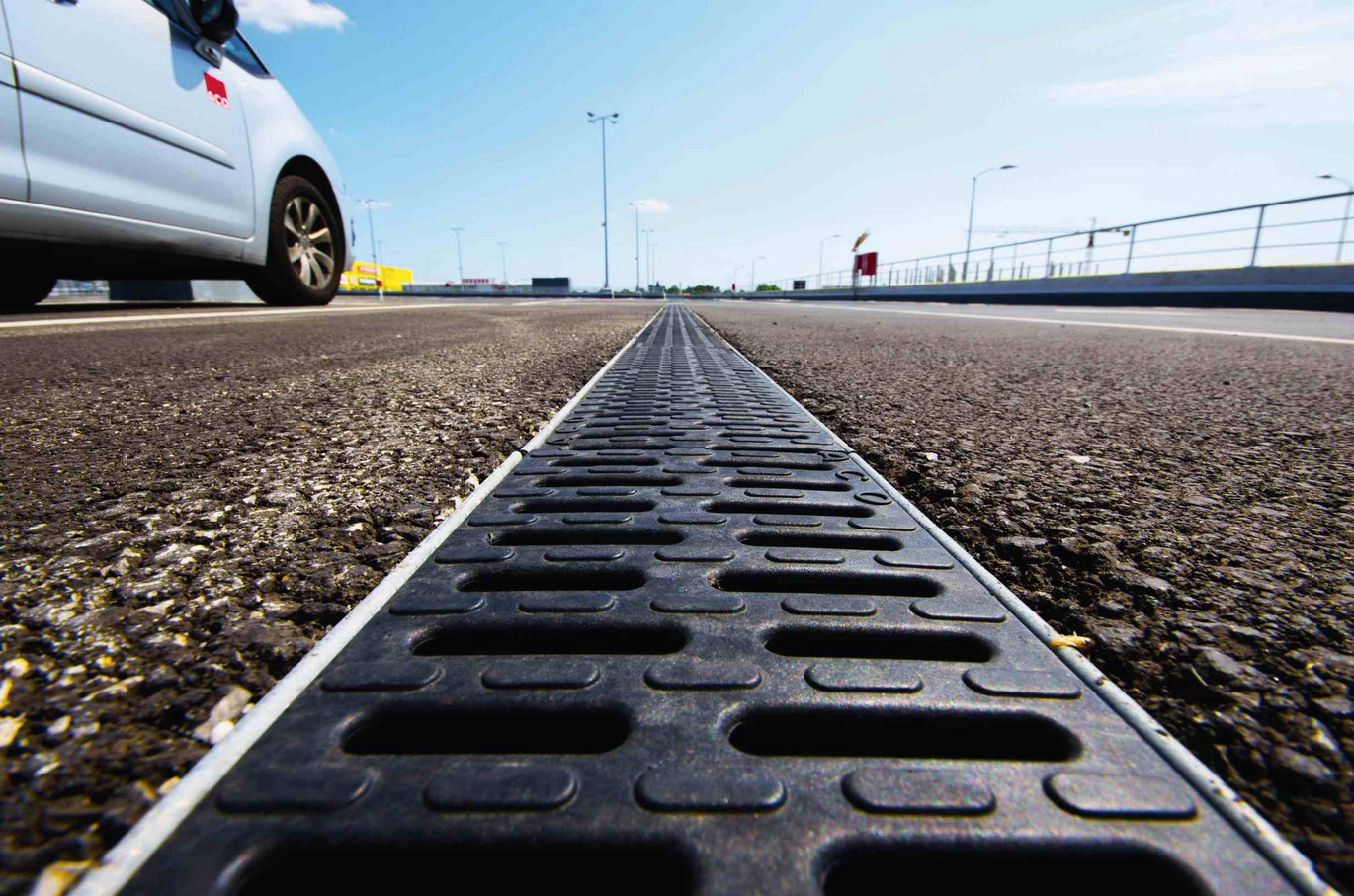

ACO has expanded its product range of surface drainage products to include channels made of high-quality plastic. The extremely light XtraDrain drainage system has been designed for applications up to class C 250 according to DIN EN 1433. The ACO DRAIN® XtraDrain is characterised by easy handling combined with top quality. Technical details, such as the tried and tested V-profile or the hexagonal structure of the side walls fulfil all requirements for a modern drainage channel. The tongue and groove connection at the start and end of the channel enable an easy and convenient installation.


Version: Plastic edge

  • Channel body without invert slope, 1000 mm
  • Drainage shaft incl. adapter
  • sump unit, 500 mm
  • Shallow channels without invert gradient, 1000 mm

Version: Galvanised steel edge

  • Channel body without invert slope, 1000 mm
  • Drainage shaft incl. adapter
  • Shallow channels without invert gradient, 1000 mm
