grease trap

ACO Grease Capture
Easy to install and operate

Commercial kitchens are challenging working environments and regardless of whether you operate a sizeable school or hotel kitchen or are the owner manager of a small catering establishment, FOG can have major impact on your business.

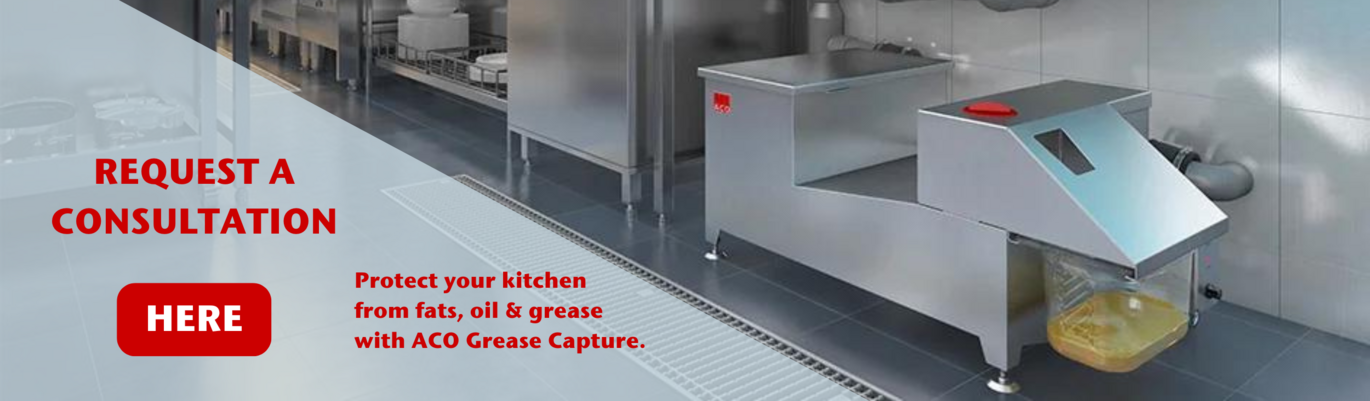

Protect your commercial kitchen using an ACO Grease Capture unit which provides outstanding FOG removal efficiency due to its unique two chamber separation and coalescence gap system. With its compact design it can be used in food service establishments where space is limited and a larger grease separator cannot be installed.

The ACO Grease Capture also prevents pipe blockage and saves time for your employees as it is easy to maintain.

What is FOG?

FOG is the abbreviation for the fats, oils and grease which are found in the wastewater produced by kitchens. FOG comprises fats, oil, grease created by food debris, fats and oils used in the cooking process, and the washing of food equipment, utensils and crockery. All kitchens produce wastewater which contains fats, oils and greases (FOG) as well as food debris.

H2O Halal Operation

ACO's comprehensive portfolio makes it possible to effectively control and manage water and ensure its ecological and economic reuse in a sustainable manner.

We go above and beyond to incorporate the HygienicFirst philosophy into halal operations (H2O) according to the Halalan Toyyib Standards for Hygienic Practices.

We are also committed to raising industry standards and promoting ESG (Environment, Social & Governance) values.

Logo Halal
Solutions for F&B and Commercial Kitchen Halal Industry
Solutions for F&B and Commercial Kitchen Halal Industry

The ACO Grease Capture is manufactured from stainless steel to maximise hygienic performance and durability. This grease separator also comes with adjustable feet as well as accessible inlets and outlets for easy connection to existing kitchen infrastructure.

Product benefits:

  • Automatic fats, oils and grease removal into waste container
  • Simple to install
  • Protects inner building pipes from fats, oils and grease blockages
  • Easy maintenance
  • Protects your kitchen from unpleasant odours
  • Hygienic - made from Stainless Steel
  • Overflow protection
  • Separation process improvement by addition of food debris removal basket
  • Very easy to operate
  • No additional costs

Watch this video to see our colleague Alex Ho present the operation of the ACO Grease Capture

You can contact him for more information:

References

Albert Supermarket

Roasted chickens, meat loaf, sandwiches, salads and other ready to eat meals are offered in majority of larger supermarkets and hypermarkets.

Preparation of these meals comes with lots of greasy wastewater that can cause troubles.

Installation of ACO Grease Capture protect businesses from undesirable problems with blocked pipes and troubles with water authorities. This successful installation shows how easy and effective grease management can be. Simply place the units under your sink and connect to your plumbing.

Request A Consultation Button

Downloads

Product Group

Autodesk Revit Version

20152016201720182019
ACO free-standing kitchen separator (International)-DownloadDownloadDownloadDownload
Model nameFlow rateContentsWeightVoltagePlug typePower supplyInlet & outlet connection typeItem

number
Silt basketGrease collection boxEmptyFull
[l/s][l][l][kg][kg]
GC500.54.82.32558230V/50HzCEE7/7600W, 2.6APush-fit HT / ACO Pipe (OD 50mm)418502.05.23.C0
Flexible coupling 1.5" (OD 38-50mm)418502.05.23.C1
Flexible coupling 2" (OD 48-60mm)418502.05.23.C2
GC1001.05.23.83178230V/50HzCEE7/7600W, 2.6APush-fit HT / ACO Pipe (OD 50mm)418502.10.23.C0
Flexible coupling 1.5" (OD 38-50mm)418502.10.23.C1
Flexible coupling 2" (OD 48-60mm)418502.10.23.C2
GC1501.58.33.839114230V/50HzCEE7/71000W, 4.3APush-fit HT / ACO Pipe (in D50, out D75)
no coupling		418502.15.23.C0
Flexible coupling (in D50, out D75)
coupling 1,5" and 3"		418502.15.23.C1
Flexible coupling (in D50, out D75)
coupling 2" and 3"		418502.15.23.C2
GC2202.28.83.847150230V/50HzCEE7/71000W, 4.3APush-fit HT / ACO Pipe (in D50, out D75)
no coupling		418502.22.23.C0
Flexible coupling (in D50, out D75)
coupling 1,5" and 3"		418502.22.23.C1
Flexible coupling (in D50, out D75)
coupling 2" and 3"		418502.22.23.C2
GC500.54.82.32558230V/50HzG600W, 2.6APush-fit HT / ACO Pipe (OD 50mm)418502.05.23.G0
Flexible coupling 1.5" (OD 38-50mm)418502.05.23.G1
Flexible coupling 2" (OD 48-60mm)418502.05.23.G2
GC1001.05.23.83178230V/50HzG600W, 2.6APush-fit HT / ACO Pipe (OD 50mm)418502.10.23.G0
Flexible coupling 1.5" (OD 38-50mm)418502.10.23.G1
Flexible coupling 2" (OD 48-60mm)418502.10.23.G2
GC1501.58.33.839114230V/50HzG1000W, 4.3APush-fit HT / ACO Pipe (in D50, out D75)
no coupling		418502.15.23.G0
Flexible coupling (in D50, out D75)
coupling 1,5" and 3"		418502.15.23.G1
Flexible coupling (in D50, out D75)
coupling 2" and 3"		418502.15.23.G2
GC2202.28.83.847150230V/50HzG1000W, 4.3APush-fit HT / ACO Pipe (in D50, out D75)
no coupling		418502.22.23.G0
Flexible coupling (in D50, out D75)
coupling 1,5" and 3"		418502.22.23.G1
Flexible coupling (in D50, out D75)
coupling 2" and 3"		418502.22.23.G2
